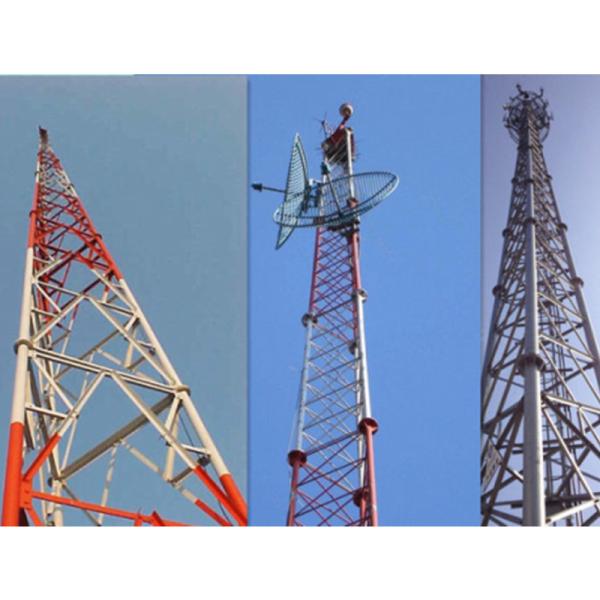

Galvanized Steel Pipe Self Supporting Communication Tower Telecom Cable 30m

Brand Name : Guangxin

Model Number : GX-5620G

Certification : ISO9001

Place of Origin : Guangzhou

MOQ : 1set

Price : USD1880-2100

Payment Terms : Western Union, L/C, T/T

Supply Ability : 300ton/month

Delivery Time : 20-30days

Packaging Details : Cotton sheets or cloth package by bundle

Product Name : Galvanized Steel Pipe Self-supporting Communication Tower Telecom Cable 30m

Place of original : Guangzhou

Hot-dip galvanization : ISO 1461 2009, ASTM A123

Tension strength (Mpa) : 360~510

Design Wind Speed : 30-50m/s, Can Customized as Buyer's Requirements

Supply mode : CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)

Design Loading : As per requirement and specification by Clients worldwide.

Tower Type : Tube Towers, Mono Pole Tower, Angle Towers

Welding Method : CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

Design Wind Pressure : 0.3-1.2KN/M²

Work Platform : Height and Quantity up to clients

Contact Now

Galvanized Steel Pipe Self-supporting Communication Tower Telecom Cable 30m

Specification:

Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Features:


1. Material: Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.

2. Tower Type: Steel Tube, Angle Steel, Lattice Mast, Self-supporting

3. Tower Style: Mono Pole Tower, Three Legs Tower, Four Legs Tower

4. Height: Below 100 meter, customized.

5. Wind Pressure: 0.35-1 KN/m2

6. Connection: Flanges, Inserting, Connecting Plate & Bolt

7. Surface Treatment: Hot Dipped Galvanized

8. Zinc Coating: 65μ-85μ

9. Supply Capacity: 1500 MT/Month

10. Color: Galvanized, or customized

11. Usage: GSM, RRU, CDMA, Micro Wave, Radio etc.

12. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA

Galvanized Steel Pipe Self Supporting Communication Tower Telecom Cable 30m

Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.
